Metal-jacketed gaskets
Basic specification:

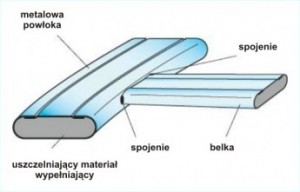

Metal-jacketed gaskets consist of metallic jacket and a filler from a soft sealing material (standard thickness of 3 mm). Sealing ensures unique elasticity, whereas metal jacket guarantees excellent tightness and protects the filling against pressure, temperature and corrosion.
Wide range of materials guarantees excellent tightness of sealing in different operating conditions.
.
Manufacturing:
S6: S12:
Standard materials:
| Material | AISI ASTM | DIN no. | DIN specification | Hardness HB | Temperature (°C) min. max. | Density (g/cubic m) |
| Carbon Steel | 238-C | 1.0038 | RSt.37.2 CS | 100-130 | -40 +500 | 7,85 |
| Stainless steal | 321 | 1.4541 | X10CrNiTi 189 | 130-190 | -250 +550 | 7,9 |
| Stainless steal | 304L | 1.4306 | X2CrNi 189 | 130-190 | -250 +550 | 7,9 |
| Stainless steal | 316Ti | 1.4571 | X10CrNiMoTi 1810 | 130-190 | -100 +550 | 7,8 |
| Stainless steal | 316L | 1.4404 | X2CrNiMo 1810 | 130-190 | -100 +550 | 7,9 |
| Monel metal 400 | N04400 | 2.4360 | NiCu 30 Fe | 110-150 | -125 +600 | 8,8 |
| Copper | – | 2.0090 | – | 50-80 | -250 +400 | 8,9 |
Sealings:
Expanded graphite -200 +550
CSF -100 +250
Dimensions:
From 250 to 3000 mm
Welded crossbeams
