Gaskets, washers, glass mica

Gaskets, washers

type A, type B, type H, type TA 28,

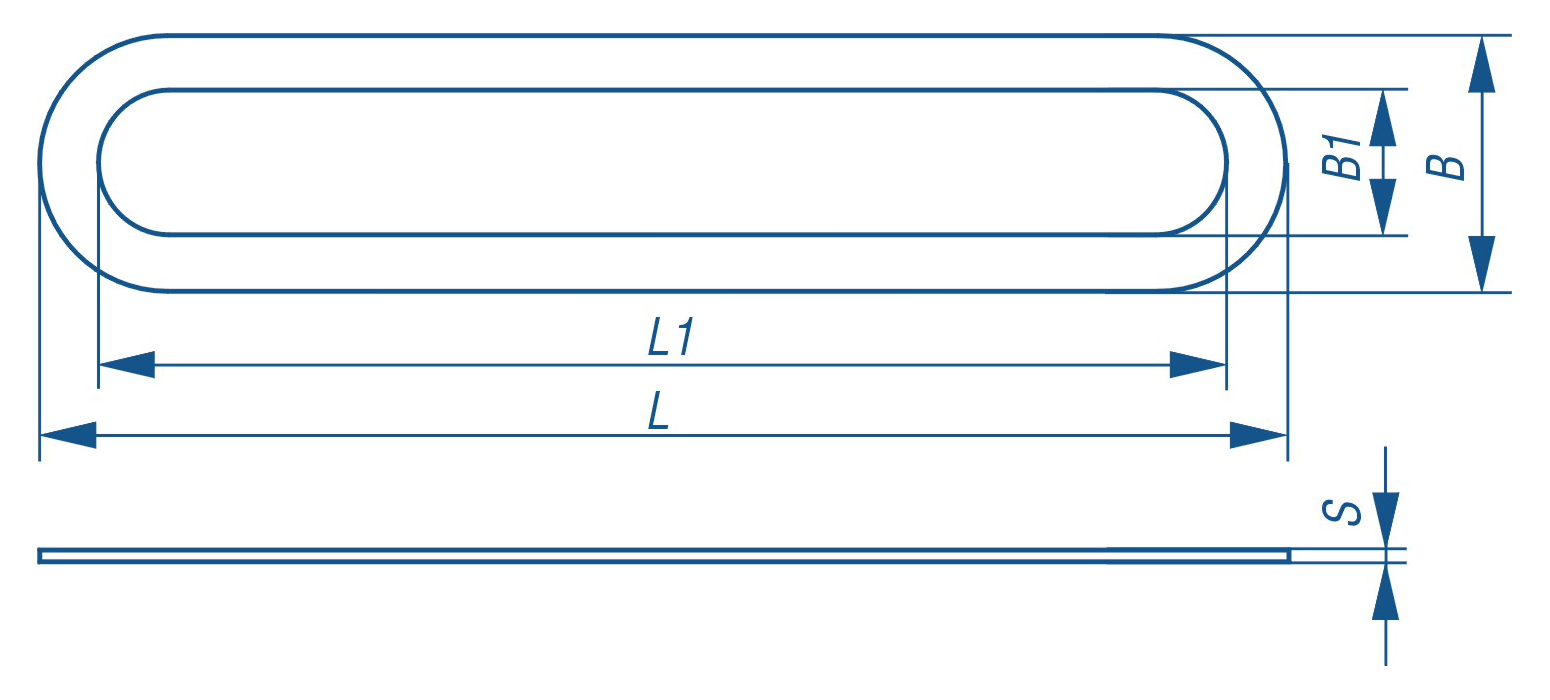

uszczelki_mika_v51---wykres

Nomenclatures:

The glass sets are supplied with the assembly instruction, in which the following terms in German language are used:
• Glasdichtung: gasket,
• Schutzbeilage: shield,
• Glasbeilage: washer,
• Glimmerlamelle: mica

Dimensions (mm)

size type A type B/H gasket and washers – type TA 28 washers
type TA 28
L L1 B B1 L L1 B B1 L L1 B B1 L L1 B B1
0 95 70 30 15 95 70 34 15
I 115 90 30 15 115 90 34 15 133 97 47 19 112 97 27 17
II 140 115 30 15 140 115 34 15
III 165 140 30 15 165 140 34 15 183 147 47 19 162 147 27 17
IV 190 165 30 15 190 165 34 15 208 172 47 19 187 172 27 17
V 220 195 30 15 220 195 34 15 238 202 47 19 217 202 27 17
VI 250 225 30 15 250 225 34 15 268 232 47 19 247 232 27 17
VII 280 255 30 15 280 255 34 15 298 262 47 19 277 262 27 17
VIII 320 295 30 15 320 295 34 15 338 302 47 19 317 302 27 17
IX 340 315 30 15 340 315 34 15 358 322 47 19 337 322 27 17
S 1,5 1,5 0,5 0,5

Mica

type A, B/H, type TA 28

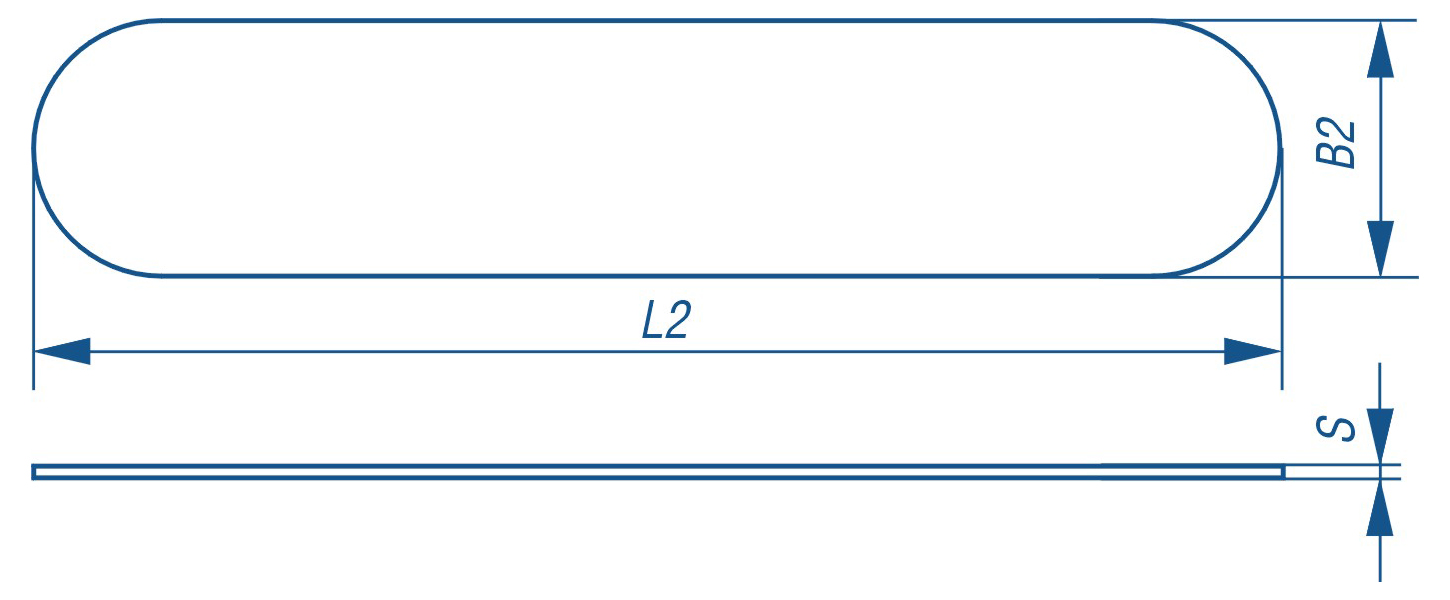

uszczelki_mika_v51---wykres_2

Material

• type A, B/H: stained first quality,
• type TA 28: stained A quality,
• on request of recipient, we offer the supplies of specially selected „extra hard” mica for TA 28-I glass of higher resistance

Dimensions (mm)

size type A type B/H type TA 28
L2 B2 L2 B2 L2 B2
0 95 30 95 34
I 115 30 115 34 133 47
II 140 30 140 34
III 165 30 165 34 183 47
IV 190 30 190 34 208 47
V 220 30 220 34 238 47
VI 250 30 250 34 268 47
VII 280 30 280 34 298 47
VIII 320 30 320 34 338 47
IX 340 30 340 34 358 47
S 0,15 ÷ 0,20 0,15 ÷ 0,20 0,30÷0,40 (0,60 TA 28-I)
